Product Description

Introduction

Fiberglass acoustic ceiling can be made into beautiful ceiling decorations and has a wide range of applications. It has the characteristics of sound absorption, sound insulation, heat insulation, environmental protection and flame retardant.

The fiberglass acoustic ceiling is a board made of glass fiber as the main raw material. During the production process, there are many criss-cross pores inside. The appearance of these pores improves the sound absorption effect of the fiberglass ceiling panel. Sound propagates in the form of sound waves. Most of the sound waves propagating in the air enter the internal pores of the ceiling panels and a small part of the sound energy is reflected through the surface. This is the principle of the sound absorption performance of the glass fiber ceiling panel.





Specifications

• Main Material: Glass wool
• Finish: Special painted laminated with decorative fiberglass tissue
• Color: White / black
• Shape: Square
• Size: 595x595 / 600x600 / 603x603 / 600x1200mm
• Thickness: 15mm / 20mm
• Edge: Square / Tegular/ Insert
• NRC: 0.8-0.9
• Fire-Resistant: Class A
• Density: Fiberglass wool 64-200KG/m³, special density can be supplied.





Advantages of fiberglass acoustic ceiling

The cavity installed on the back of the glass fiber ceiling is usually more than 200mm, so the sound absorption coefficient for low frequency break will be greatly improved. Fiberglass ceiling tiles will absorb sound better than normal building ceilings. The fiberglass acoustic ceiling  tiles will achieve a full frequency sound absorption effect.

More style. fiberglass acoustic ceiling can do different craft processing in the surface and can add different color processing in the surface according to the requirement. So it have better decorative effect.

Because fiberglass acoustic ceiling  tiles is made of fiberglass, it has good fire resistance. Fiberglass ceilings can be rated up to A.

fiberglass acoustic ceiling  tiles is pressed by the light glass fiber.So this the thickness of plank is thin, mass is light, material performance is stable. Therefore, it is easy to transport and store.

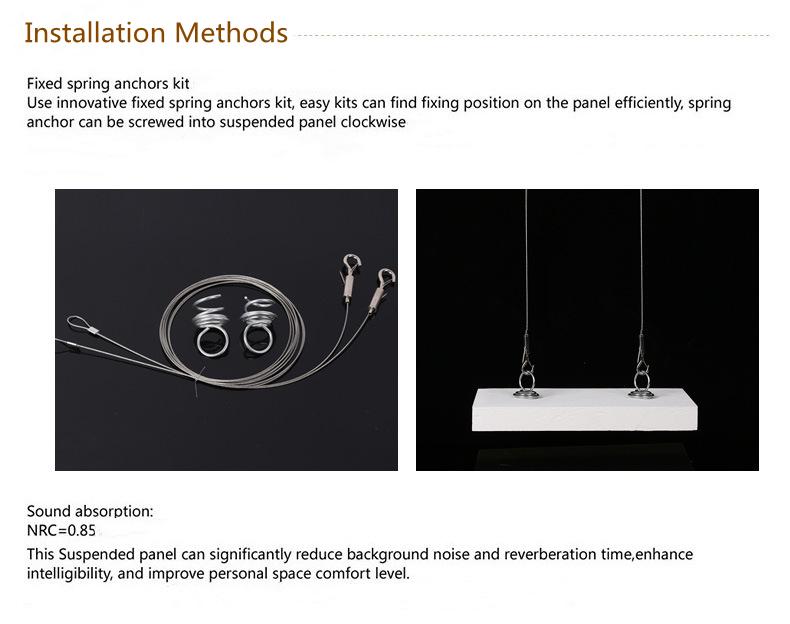

Installation

The fiberglass ceiling tiles has three installation modes: clear frame, dark frame and drop level. The construction is very convenient and fast, and the site is relatively clean. Installation steps are as follows.

Measure the length and width of the ceiling, according to the size of the glass fiber decorative sound-absorbing ceiling panels, symmetrical arrangement from the center of the ceiling axial on both sides.

Light steel or aluminum keel shall be installed according to the arrangement of sound absorption plates.

Payment Terms︰ TT / LC / DP / DA

Product Image
